服務器維護CentOS 7.2 雙網卡綁定及相關問題解決

2020-06-05 17:34 作者：艾銻無限 瀏覽量：

服務器維護小知識線上服務器，安裝CentOS 7.2 x64最小化安裝，需要做鏈路聚合，雙網卡綁定。在CentOS 6.x 和 CentOS 7上測試都OK，于是直接開搞。

　　說明下，以下環境是在虛擬機中實現的：

　　系統： CentOS 7.2 x64 最小化安裝。


eno16777736 ： 橋接網卡：10.0.0.11/24

剩下的兩張網卡準備做綁定：

       eno33554984

       eno50332208

[root@linuxidc ~]# nmcli con sh

NAME                UUID                                  TYPE            DEVICE

Wired connection 2  bf0cf9b6-c7fb-4c0a-ada4-abfb650dd5f0  802-3-ethernet  --

Wired connection 1  5b4e0b3e-c469-404c-8839-76d18442fc20  802-3-ethernet  --

eno16777736         100e462e-c0d0-4271-9b5a-1c8e47ff0d03  802-3-ethernet  eno16777736

[root@linuxidc ~]# nmcli con del 5b4e0b3e-c469-404c-8839-76d18442fc20 bf0cf9b6-c7fb-4c0a-ada4-abfb650dd5f0

Connection 'Wired connection 1' (5b4e0b3e-c469-404c-8839-76d18442fc20) successfully deleted.

Connection 'Wired connection 2' (bf0cf9b6-c7fb-4c0a-ada4-abfb650dd5f0) successfully deleted.

[root@linuxidc ~]# nmcli con add type team ifname team0 con-name team0 config '{"runner":{"name":"roundrobin"}}'

Connection 'team0' (913f05c2-15d8-49a9-a35f-8bc5ee843c0c) successfully added.

[root@linuxidc ~]# nmcli con add type team-slave ifname eno50332208 con-name team0-port2 master team0

Connection 'team0-port2' (1583854c-1f85-4c76-8cc7-c643071d4b82) successfully added.

[root@linuxidc ~]# nmcli con mod team0 ipv4.address "192.168.121.100/24"

[root@linuxidc ~]# nmcli con mod team0 ipv4.method manual

 [root@linuxidc ~]# nmcli con sh

NAME         UUID                                  TYPE            DEVICE

eno16777736  100e462e-c0d0-4271-9b5a-1c8e47ff0d03  802-3-ethernet  eno16777736

team0-port2  1583854c-1f85-4c76-8cc7-c643071d4b82  802-3-ethernet  --

team0-port1  bfd408b4-76d9-4f5c-ad5b-4d92430eb6ba  802-3-ethernet  --

team0        913f05c2-15d8-49a9-a35f-8bc5ee843c0c  team            --

服務器維護小知識到這里都沒毛病。


[root@linuxidc ~]# nmcli con up team0

Error: Connection activation failed: NetworkManager plugin for 'team' unavailable

什么鬼？NetworkManager "team"插件不可用。于是開始排查。

是否存在team模塊

[root@linuxidc ~]# lsmod | egrep *team*

木有。那直接restart network好了。

[root@linuxidc ~]# systemctl restart network

Job for network.service failed because the control process exited with error code. See "systemctl status network.service" and "journalctl -xe" for details.


[root@linuxidc ~]# systemctl status network

...

Mar 25 04:47:56 linuxidc network[2742]: Bringing up interface team0:  Error: Connection activation failed: NetworkManager plugin for 'team' unavailable

Mar 25 04:47:56 linuxidc network[2742]: [FAILED]

...

服務器維護小知識一樣的報錯，難道什么包沒有安裝到？

[root@linuxidc ~]# yum list all | grep NetworkManager*

NetworkManager.x86_64                   1:1.0.6-27.el7                 @anaconda

NetworkManager-libnm.x86_64             1:1.0.6-27.el7                 @anaconda

NetworkManager-tui.x86_64               1:1.0.6-27.el7                 @anaconda

NetworkManager-wifi.x86_64              1:1.0.6-27.el7                 @anaconda

NetworkManager-adsl.x86_64              1:1.0.6-27.el7                 yum

NetworkManager-bluetooth.x86_64         1:1.0.6-27.el7                 yum

NetworkManager-glib.x86_64              1:1.0.6-27.el7                 yum

NetworkManager-libreswan.x86_64         1.0.6-3.el7                    yum

NetworkManager-libreswan-gnome.x86_64   1.0.6-3.el7                    yum

NetworkManager-team.x86_64              1:1.0.6-27.el7                 yum

NetworkManager-wwan.x86_64              1:1.0.6-27.el7                 yum

哎喲，還真有個NetworkManager-team沒有安裝叻。

[root@linuxidc ~]# yum install NetworkManager-team -y

然后再次嘗試：

[root@linuxidc ~]# nmcli con sh

NAME         UUID                                  TYPE            DEVICE

eno16777736  100e462e-c0d0-4271-9b5a-1c8e47ff0d03  802-3-ethernet  eno16777736

team0-port2  1583854c-1f85-4c76-8cc7-c643071d4b82  802-3-ethernet  --

team0-port1  bfd408b4-76d9-4f5c-ad5b-4d92430eb6ba  802-3-ethernet  --

team0        913f05c2-15d8-49a9-a35f-8bc5ee843c0c  team            --

 [root@linuxidc ~]# nmcli con up team0

Error: Connection activation failed: NetworkManager plugin for 'team' unavailable

服務器維護小知識還是同樣的錯，這就尷尬了。那就重啟下NetworkManager 在看看。

[root@linuxidc ~]# systemctl restart NetworkManager


[root@linuxidc ~]# nmcli con sh

NAME         UUID                                  TYPE            DEVICE

team0-port2  1583854c-1f85-4c76-8cc7-c643071d4b82  802-3-ethernet  eno50332208

eno16777736  100e462e-c0d0-4271-9b5a-1c8e47ff0d03  802-3-ethernet  eno16777736

team0-port1  bfd408b4-76d9-4f5c-ad5b-4d92430eb6ba  802-3-ethernet  eno33554984

team0        913f05c2-15d8-49a9-a35f-8bc5ee843c0c  team            team0

好了？ 緊查看是不是roundrobin模式

[root@linuxidc ~]# teamdctl team0 st

setup:

  runner: roundrobin

ports:

  eno33554984

    link watches:

      link summary: up

      instance[link_watch_0]:

        name: ethtool

        link: up

        down count: 0

  eno50332208

    link watches:

      link summary: up

      instance[link_watch_0]:

        name: ethtool

        link: up

        down count: 0

[root@linuxidc ~]# teamnl team0 ports

 4: eno50332208: up 1000Mbit FD

 3: eno33554984: up 1000Mbit FD

一切OK，老鐵，扎心了。

服務器維護小知識接下來測試下roundrobin

   這里說明下：roundrobin這種bind模式：

       先來講下網卡bind的原理：

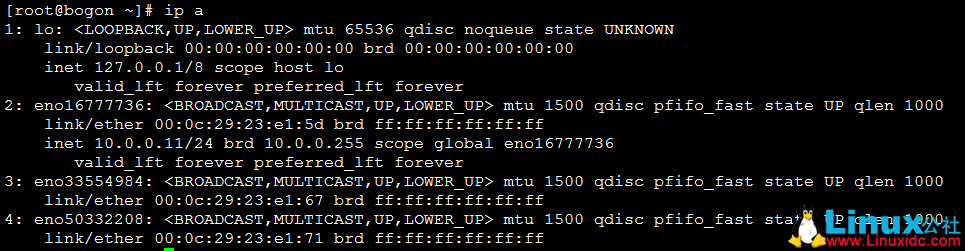

           通過將兩張或者多張網卡通過軟件虛擬出來一張邏輯網卡來傳輸數據，這里bind的模式有很多種。比如我們上面的這種，就是其中的鏈路聚合模式。當使用該模式的時候，兩張物理網卡和邏輯網卡的mac地址都被設置為一致，大家都知道，我們做鏈路聚合就是為了讓多張物理網卡聚合在一塊
擴展數據帶寬的方式，既然我們?cè)谶壿嬌鲜且粡埦W(wǎng)卡，那mac地址也就必須一致對吧。不然我們接到交換機或者路由器上，邏輯網卡一會是物理網卡服務器維護小知識1的mac地址，一會又是物理網卡2的地址，交換機一會找的到人，一會又找不到人。那數據還怎么傳輸。

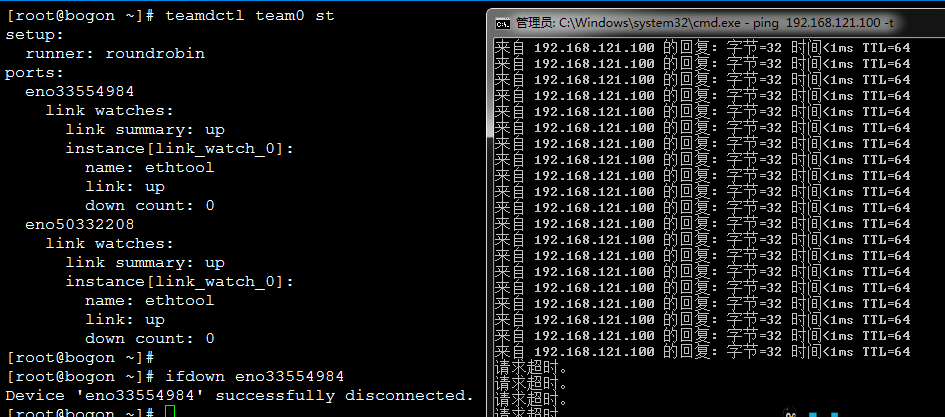

           在鏈路聚合中，因?yàn)槭莾蓮埼锢砭W(wǎng)卡捆綁的模式，如果其中一張網卡down掉了，整個鏈路也就癱了。

　　　　如下：
